FS PET Package

• Power Range: 20-100 HP
• Working Pressure: 7-13 Bar (G)
• Air Flow Capacity: 92-500 CFM
• High-performance 5/6 rotor profile
• Delivers high performance in a compact design
• Built for continuous-duty operation in tough tropical conditions
• Electronic control system with alphanumeric display for safety monitoring and service indicators
• Best-in-class cooling system ensures the lowest air-oil temperature
• High-efficiency IP55 motors with Star-Delta starters
• Quiet, steady, and dependable performance

Boosters

Specially designed for long life and trouble-free operation in the PET blowing industry.

Key Features

• Intake pressure options: 5-13 Bar
• Maximum working pressure: 40 Bar
• Load–Unload operating system

Compressor Block

Designed for heavy-duty industrial applications.

Features

• Heavy-duty cast-iron crankcase
• Precisely machined and honed cast-iron cylinders
• Bare pumps with efficient cooling fins
• GGG60 cast crankshaft with counterweights
• High-capacity, high-pressure resistant stainless steel inlet and outlet valves
• Durable compression and oil-retaining rings

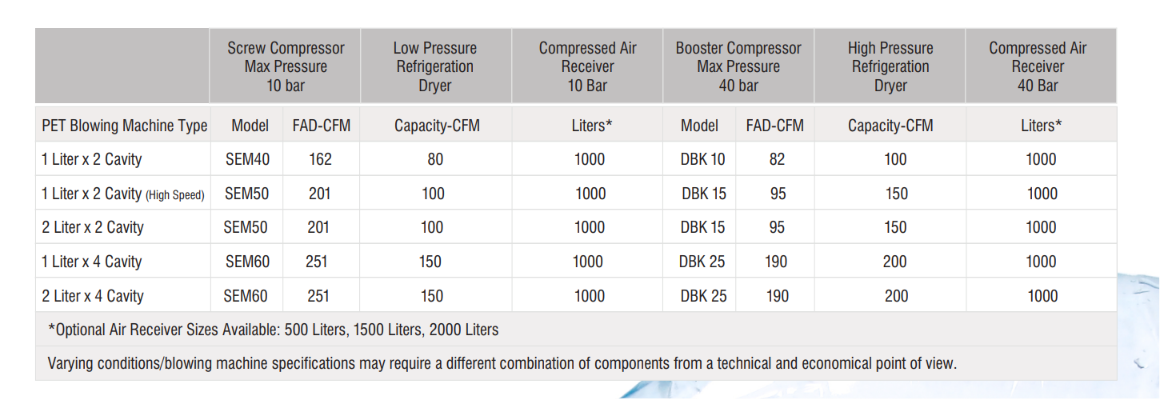

Complete High-Tech PET Blowing Package

Every installation has unique operating conditions. SEM systems are designed to provide the right air quality, ensuring maximum equipment protection while minimizing operating costs.

Main Motor & Drive System

Features

• Belt-pulley drive mechanism
• Special fan-type cast-iron pulley
• Easy belt tensioning system
• Special loadless operation system

Safety Systems

The compressor is equipped with comprehensive safety features, including:

• Intake air control system
• High-pressure safety valve
• Manual drain valve
• Non-return valve
• Belt-pulley guard
• Outlet pressure gauge
• Air inlet and outlet hoses & connections
• Vibration pads
