NXHE Series

The FS-Curtis NxHE Series two-stage rotary screw air compressors are heavily relied upon in industry for their legendary reliability and highly energy efficient operation. NxHE splits the compression process into two stages and removes heat of compression in between. The result is less input horsepower required to generate the same flow as single stage. Splitting the compression process over two stages also reduces the compression ratio, which results in lower thrust loads on the bearings and longer air end life. NxHE two-stage compressors offer unparalled energy efficiency in a reliable long life industrial air compressor - making it ideal for high flow base load industrial applications.

More acfm per horsepower than single stage equals power savings, and the ability to select a smaller compressor Lower specific power/higher Isentropic Efficiency than single stage equals power saving Two-stage air end life is considerably longer than its single stage counterpart due to reduced thrust loads on bearings (lower compression ratio in each stage) Over / Under design allows for inter-stage cooling which removes heat of compression and improves overall efficiency Independent bearing lubrication system delivers oil to critical wear points to extend air end life

NXHE SERIES
FEATURES AT A GLANCE

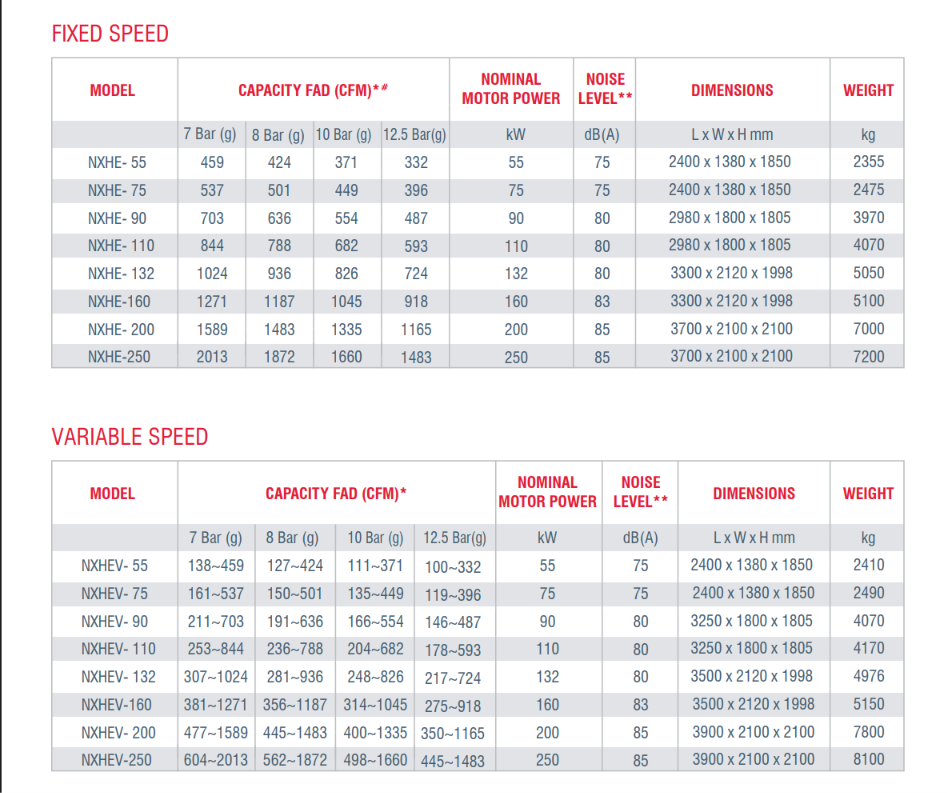

Two Stage Rotary Screw Air Compressors 55–250 kW

Designed for quiet operation.

• Centrifugal cooling fan and compartmentalized package air flow make for extremely smooth and quiet operation.
• Extra thick, laminated oil-proof sound insulation greatly reduces noise.

eCOOL® TECHNOLOGY

The ultimate in system protection and reliability.

• Protects critical components from compressor-generated heat.
• Intelligent component layout optimizes cooling air flow through the package and improves overall efficiency and reliability.
• Extends component life and reduces downtime.

---

QUALITY COMPONENTS

Built to the highest levels of dependability and reliability.

• Exclusive FS-Curtis air end utilizes precision cut rotor profiles to maximize efficiency.
• Premium efficiency TEFC (IP55, Class F) main motor protects against dust ingress and high operating temperatures, prolonging the life of the motor.
• Components are generously sized to reduce pressure drop throughout the package, increasing overall efficiency.

SUPERIOR PACKAGE DESIGN

Designed for low cost of ownership and sustainable reliability.

• Pulsation-free compressed air
• 100% continuous duty
• Easy to maintain
• Controls
• Load/Unload
• Modulation
• Variable Speed
• Energy efficient at full load delivers more air for the money in a smaller footprint

DEMANDSMART ENERGY MANAGEMENT SYSTEM

The ideal combination of variable speed drive, controller and drivetrain.

• Greatly reduces energy consumption at part load
• Reduces lifecycle costs by limiting energy consumption
